Description

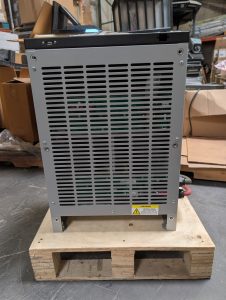

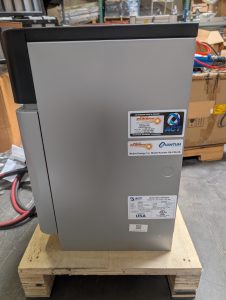

Industrial ACT(Advanced Charging Technologies) Quantum battery charger is a gray and black metal unit designed for 480 VAC input.
It has a 4 kW power rating with a maximum output of 50 VDC and 100 A.
This charger is compatible with flooded lead acid, AGM, gel, and Li-Ion battery types.

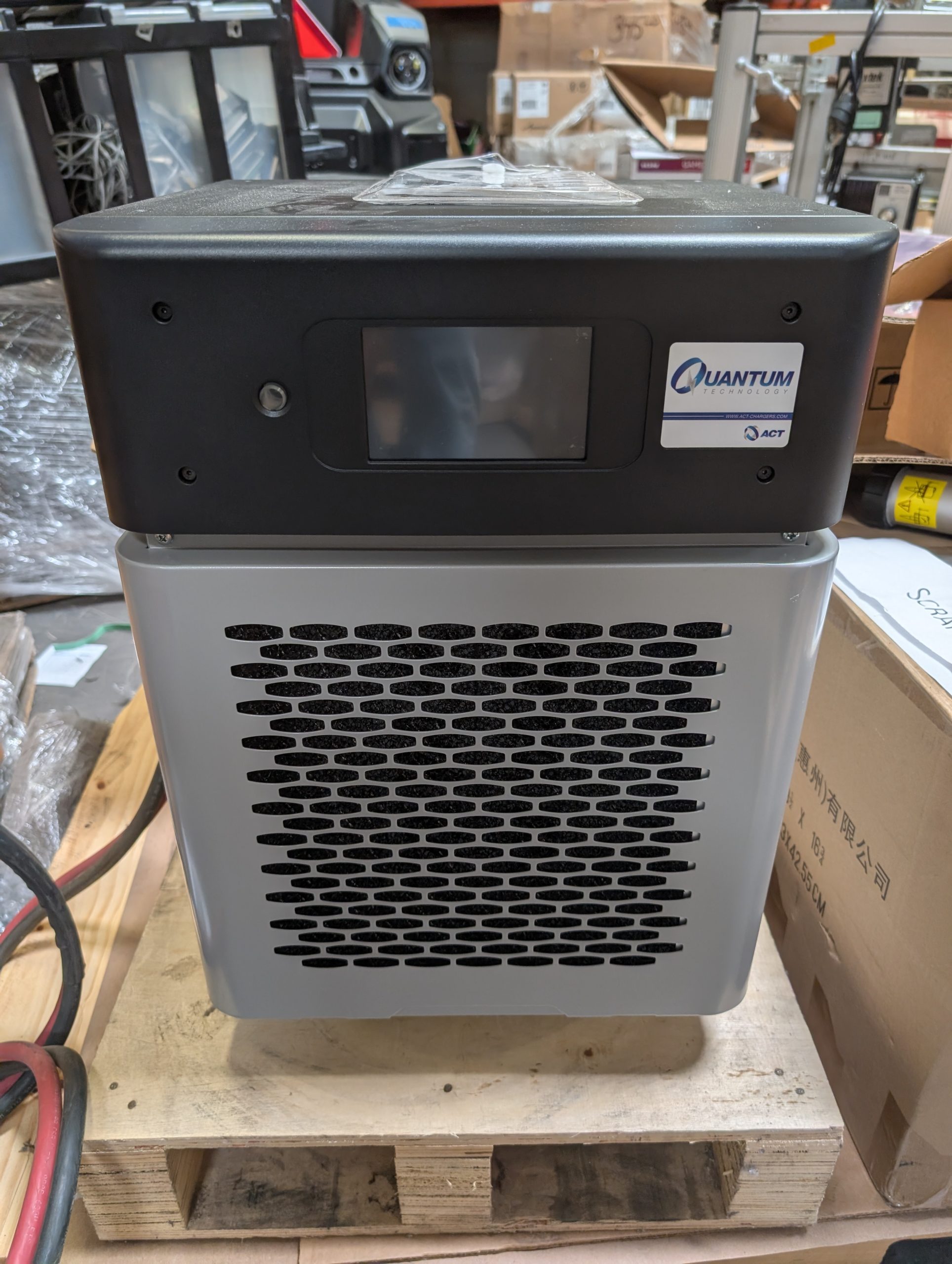

The front panel includes a digital display screen and a power button.

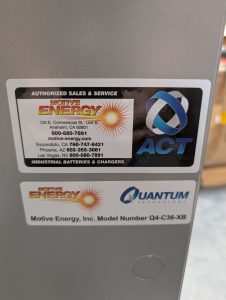

There are 2 model numbers on this unit.
One is Model Q4-24/36-100-480, The other model number is Q4-C36-XB
I believe it is set up to charge 36 Volt forklift batteries. I am no expert.

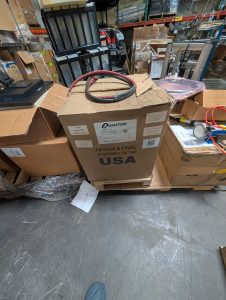

Do your homework if interested. See below photos for the information I found using AI search based on the model numbers.
,
Act quantum model number specs Q4-24/36-100-4
The ACT Quantum Q4 Charger (Model:
Q4-24/36-100-480) is an industrial smart high-frequency battery charger made by Advanced Charging Technologies (ACT).Specifications
- Brand / Series: ACT Quantum Q4 Series
- Model Number:
Q4-24/36-100-480 - Nominal Battery Voltage: 24V / 36V max (Supports multi-voltage battery setups)
- Output Current: 100 Amps DC
- Output Voltage: 50 VDC max
- Power Output: 4 kW / 4,000 Watts
- AC Input Voltage: 480 VAC, 3-Phase (3-wire & ground), 50/60 Hz
- Compatible Battery Types: Flooded Lead-Acid, AGM, Gel, and Lithium-Ion (Li-Ion)
- Connectivity: Built-in Wi-Fi and cloud data integration for real-time tracking, management, and peak shaving.
The part number
Q4-C36-XB does not refer to a standalone charger model, but rather specifies an internal or external structural component for an ACT Quantum Q4 Charger.In Advanced Charging Technologies (ACT) configuration nomenclature, this breakdown details what the designation represents:
Part Number Breakdown
- Q4: Quantum Q4 Series Cabinets. This indicates the component is specifically designed to fit or support the 4 kW small-chassis footprint (which typically holds up to two 2kW power modules).
- C36: 36-Volt Configuration. This denotes that the underlying wiring, breakers, or mounting setup is configured specifically to support industrial 36V battery charging applications.
- XB: Internal Blank / Bracket / Expansion Configuration. This typically stands for a structural “Blank” plate, a internal mounting “Bracket”, or an “Expansion Box” option used to cover an empty power module slot or manage cabling within the Q4 chassis.
-
Common Associated ComponentsBecause the Q4 utilizes a modular design, you will usually see this part number on a manifest alongside:
- Power Modules: Such as the 24/36V 480V 3-Phase module slots.
- Blanking Plates: Used to block off the second module bay when the charger is only running a single 2kW module (e.g., operating as a 50A charger instead of a 100A charger).
